Component to RGB Converter
Device Overview

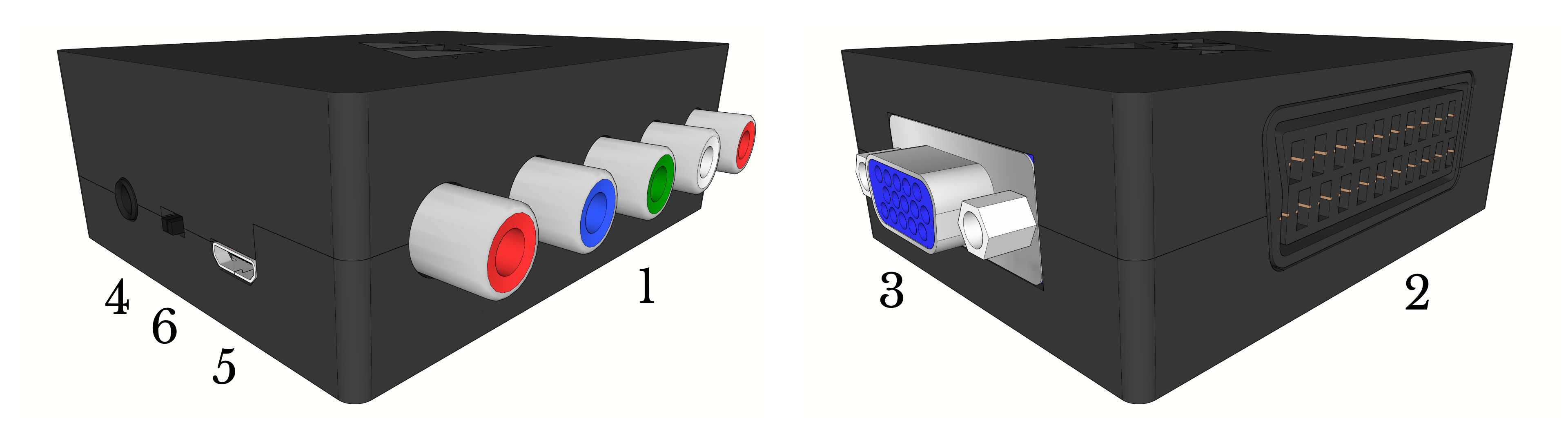

The device accepts a single YPbPr (component) video input + stereo audio [1], and outputs both RGBS + stereo audio over Euro-SCART [2], RGBHV over VGA (D-sub 15) [3], and stereo audio via a 3.5mm audio jack [4].
The device needs to be powered with 5V DC using the micro-USB connector [5]. It is a relatively low power device, but is recommended to use a supply capable of providing at least 500mA.
The switch [6] toggles the SCART status output. It is NOT for power. When switched to the left, the status output will be off, and to the right (towards the micro-USB port), the status output will be on @16:9 resolution. It is recommended to leave this in the off position for 4:3, but many TVs use this for auto-detection.
The device is uni-directional. The device will not accept SCART or VGA inputs, and will not output component video. The audio from the component RCA jacks is passed directly to the 3.5mm jack with no filtering or conversion.
Please note that noisy power supplies may cause quality issues. Please check this first if you notice a noisy output image or audio.
When SD and HD (>25KHz) resolutions are switched at the input, the device performs an automatic reset by toggling the INPUT SELECT of the chip (for ~100ms). This avoids issues with rapid resolution switching for certain games, but does mean there will be a brief delay when switching between SD and HD resolutions.
Technical Details
| Component Input | Y + Pb + Pr + stereo audio (over RCA) |
| SCART Output | R + G + B + CSync + stereo audio (over Euro SCART) |
| VGA Output | R + G + B + HSync + VSync (over D-sub 15 VGA) |
| Audio Output | Audio in passed directly to SCART + 3.5mm jack (no filtering) |
| RGB Levels | 0.7Vpp when 75 ohm terminated (2V 75 ohms series) |
| SCART Sync | 0.7Vpp CSync when 75 ohm terminated (5V 470 ohm series) |
| VGA Sync | 5Vpp 100 ohm series HSync + VSync |
| Supported Formats | 240p, 288p, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p |
| Conversion Matrix | Rec. 601 for SDTV/EDTV (<25KHz), Rec. 701 for HDTV (>25KHz) |
| Latency | Effectively zero |
| Power | <250mA @ 5V DC over micro-USB - 750mA PTC resettable fuse at input |
| SCART Status | Switch between OFF (0V) and ON @ 16:9 (5V) - pin8 fused at output |
